Description

Main Features:
- CE approval
 - FM Radio function
 - Optional 1 or 2 SIM cards
 - MTK chipset
 - GSM 850/900/1800/1900MHz
 - SMS, Call waiting, Call divert, Call conference
 - Optional lock pin, network lock, or keyboard lock
 - Multi-language support: Arabic, Portuguese, Spanish, Russian, English, etc.
 - Integrated or TNC antenna optional
 - Warranty: 1 year
 - Customization options: Net lock, Logo printing, software functions, language (MOQ: 1000 pcs)

Main Functions:
- Support GSM 850/900/1800/1900MHz
 - Caller ID
 - Dot-matrix display with optional languages: Spanish, English, Chinese
 - SMS function
 - IP number setting
 - Software upgrade jack
 - Emergency call
 - Call in / Call out / Call divert / Call waiting limitation function
 - Lock function: SIM card, network, cell, and operator
 - Local number / Direct number / Limited number setting
 - Speed dial function
 - Redial function
 - Support three-way conference call
 - Store more than 100 SMS messages
 - 7-level headphone volume and silence adjustment
 - Speakerphone
 - Low-power indicator
 - Store 20 missed or received calls and last ten dialed numbers
 - Packing Size (mm): 22016053
 - Support STK1114

Menu Show:

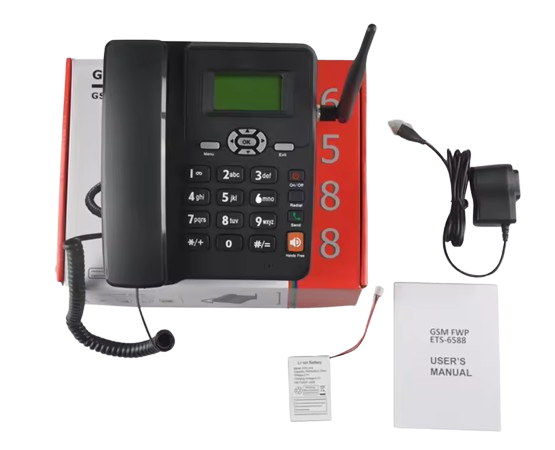

Packing list
- 1 pcs-battery
 - 1 pcs – Fixed wireless phone
 - 1 pcs- user manual
 - 1 pcs-power adapter (EU/UK/US optional)
 - 1 pcs-antenna (TNC/Intergraded optional)


Operating Requirements:
- Operating Frequency: GSM900-1800MHz/850-1900MHz (automatically switchable)
 - Normal Operating Temperature: -30°C to 70°C Restricted Operating Temperature: -30°C to 80°C Storage Temperature: -40°C to 85°C
 - Environment Noise: Below 60dB(A)
 - SIM Card Support: 1.8V/3V
 - Channel Interval: 200KHz
 - Receive Sensitivity: <-100dBm
 - Relative Humidity: 45% to 95%
 - Atmospheric Pressure: 86kPa to 106kPa
 - Support for Online Software Upgrade
 - AC Power Voltage: 220V, Frequency: 50Hz
 - GPRS Multi-slot Class 10/8 GPRS Mobile Station Class B
 - GSM Compliance: Phase 2/2+
- Class 4 (2W@850/900MHz)
 - Class 1 (1W@1800/1900MHz)

 - Control via AT Commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands)
 - Phone Power: DC 9V 1000mA
 - Battery: 3.6V 1300mAh Ni-MH rechargeable battery
 - Accessories: Includes batteries

- Standby Time: More than 72 hours
 - Talk Time: More than 4 hours
